# CORZAN® CPVC 배관의최대지지간격

### Pipe and Fittings

 Choose a page

서포트 간격권장사항은 1.0이하의비중을가진유체를전달하는,단열재가설치되지않은배관의직선경로에기초합니다.

밸브, 플랜지조인트, 티를이용한브랜치연결및기타형태의집중응력하중을 유발하는 무거운시스템구성요소는독립적으로지지되어야합니다.

비중이1.0보다큰경우,제공된표의지지간격에다음과같은보정계수를곱해야합니다:

![Corzan CPVC Support Spacing Specific Gravity factors](https://www.corzan.com/hs-fs/hubfs/Corzan_Industrial/Charts/en-us/gravity-factors-cpvc-piping.png?width=564&name=gravity-factors-cpvc-piping.png)

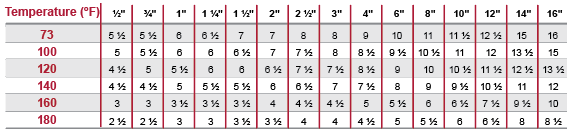

***최대****서포트****간격****(ft)***

***Schedule 80***

![Maximum Support Spacing (ft.) Schedule 80](https://www.corzan.com/hs-fs/hubfs/Corzan_Industrial/Charts/en-us/max-support-spacing-schedule-80.png?width=569&name=max-support-spacing-schedule-80.png)

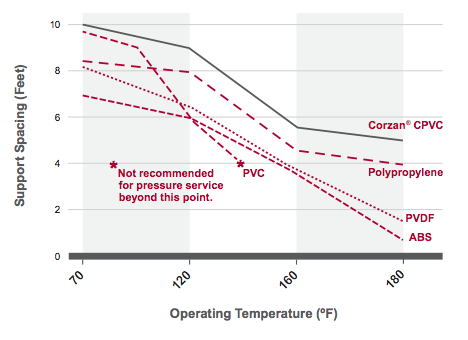

## **6인치 Schedule 80 열가소성 수지 배관의 서포트 간격**

![Corzan CPVC pipe and support spacing](https://www.corzan.com/hs-fs/hubfs/Corzan_Industrial/Charts/en-us/Corzan-cpvc-pipe-spacing.png?width=468&name=Corzan-cpvc-pipe-spacing.png)

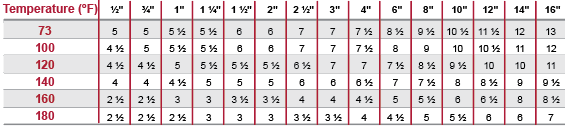

**최대****서포트****간격****(ft)**

## ***Schedule 40***

![Maximum Support Spacing (ft.) Schedule 40](https://www.corzan.com/hs-fs/hubfs/Corzan_Industrial/Charts/en-us/max-support-spacing-sch-40.png?width=567&name=max-support-spacing-sch-40.png)

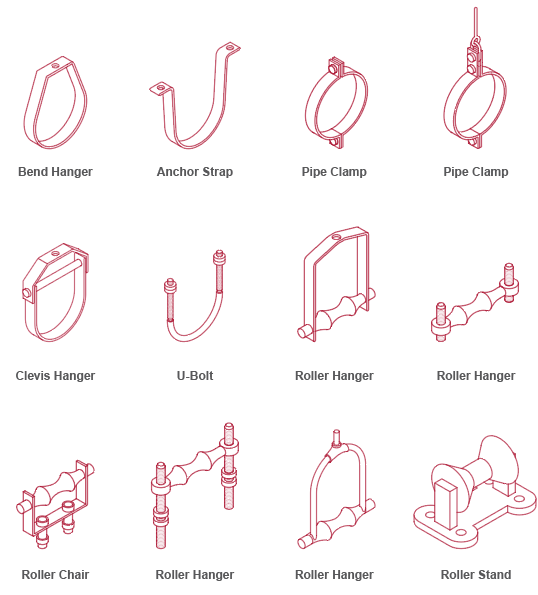

## **파이프행어, 클램프및지지대**

![Corzan CPVC Pipe Hangers, Clamps and Support Diagrams](https://www.corzan.com/hs-fs/hubfs/Corzan_Industrial/Content_Photos/piping-supports-hangers-clamps.png?width=538&name=piping-supports-hangers-clamps.png)

## **수평배관의 행어및서포트**

Corzan® 배관은 [확장및수축](https://www.corzan.com/Ko/piping-systems/specification/thermal-expansion?hsLang=ko). 으로인한움직임을허용하도록 서포트에단단히고정되지않고매끄러운스트랩또는행어로고정되어야합니다. 행어에는파이프와접촉하는 부위에거칠거나날카로운가장자리가없어야합니다.



## **수직배관의행어및서포트**

Corzan 파이프의수직 배관은파이프클램프또는라이저와가까운수평연결부에위치한행어에의해지지되어야합니다. 배관을비틀거나, 절단또는마모시키지 않는 행어및스트랩을사용해야합니다.

팽창/수축이가능하도록설계엔지니어가지정한대로각층의서포트와수직배관을직각으로유지하고, 2인치이하의배관은추가 가이드를 설치합니다.
