Manufacturer cleanrooms keep small particles from adversely affecting production quality. Semiconductor plants, for example, often use cleanrooms when layering and etching silicone wafers for computer chips.

Because many hazardous, highly reactive gases and liquids are used to keep semiconductor processes clean, accidental fires can occur. Even the smallest fire and subsequent smoke can:

  • Contaminate a cleanroom, putting a semiconductor plant out of operation for extended periods of time.
  • Create a fire hazard and require immediate evacuation.

A proactive solution—typically required for cleanrooms—is to use fire retardant materials across the cleanroom that are both difficult to ignite and give off little to no smoke.

When specifying cleanroom piping, ducting, flooring and more, semiconductor manufacturers should look for materials tested in accordance with FM 4910 standards.


How Are Plastics Tested for Use in Cleanrooms?

The FM 4910 “Cleanroom Materials Flammability Test Protocol” specifically evaluates a material’s fire propagation behavior and potential for smoke contamination—both important measures for cleanroom applications. The standard is intended to “verify that the product as described will meet minimum specific stated conditions of performance, safety, and quality.”

For a material to comply, three tests are involved to generate its Fire Propagation Index (FPI) and Smoke Damage Index (SDI).


1. Ignition Test

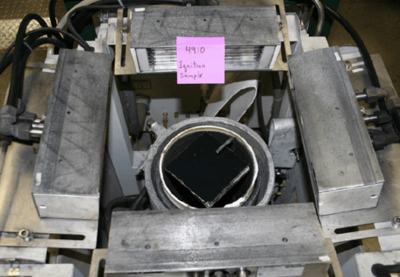

FM 4910 plastics fire ignition sample test

During the ignition test, the sample is exposed to various external heat flux values, which are fixed. The material is observed and measured visually for:

  • Time to vapor formation
  • Time to sustained-ignition

The results of this test are used to calculate the critical heat flux—the maximum heat flux at or below which there is no ignition—and the thermal response parameter—an indicator of the ignition resistance of a material.


2. Combustion Test

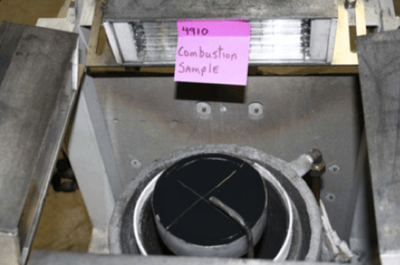

FM 4910 plastics fire combustion sample test

For the combustion test, after being exposed to 50 kW/m2 of external heat flux, the sample is measured for:

  • Time to vaporization
  • Sustained ignition
  • Flame heights
  • Release rates for heat CO, CO2, hydrocarbons and smoke

This derived yield of smoke figure is used to calculate the Smoke Damage Index (SDI), which indicates the extent of smoke contamination of the environment during fire propagation.


3. Fire Propagation Test

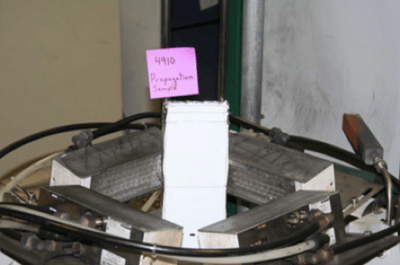

FM 4910 plastics fire propogation test sample

To simulate a large-scale fire environment, the fire propagation test is performed in a chamber of 40% oxygen. The bottom of a sample is exposed to 50 kW/m2 of external heat flux in the presence of a pilot flame.

Once the sample begins to burn, the test is continued until there are no visible flames and no material vapors are issuing from any side of the sample.

The purpose is to see if the fire will propagate by itself from the heat flux of its own flame. Behavior will be classified somewhere between “no fire propagation” and “accelerating fire propagation.”

The test ultimately determines the Fire Propagation Index (FPI), which is an index representing the propensity of the material to support fire propagation.


How Does Corzan® CPVC Perform?

Select Corzan® CPVC compounds have been evaluated and tested in accordance with the FM 4910 test protocol for fire propagation and smoke development. This includes both pipe compound and those used to manufacture sheet, allowing Corzan CPVC to be used across semiconductor cleanrooms. Common examples include ducting to carry away corrosive vapors from etching, and even for the construction of the cleanroom walls, flooring and more.

Based on its FM 4910 test and related fire performance, five key qualities confirm Corzan CPVC for cleanroom applications.

  • Ignition Resistance. CPVC’s flash ignition temperature is 900°F (482°C), making it far less susceptible to ignition than other thermoplastic materials.
  • Burning Resistance. Corzan CPVC’s Limiting Oxygen Index (LOI) is 60%, meaning it requires that much oxygen to sustain a flame. For reference, the Earth’s atmosphere is made up of 21% oxygen.
  • Flame Spread Resistance. For UL 94—which measures material’s resistance to burning, dripping, glow emission and burn through—Corzan CPVC has achieved the highest vertical burn rating available within the scope of the tests.
  • Smoke Generation Resistance. As covered by FM 4910, Corzan CPVC only generates a limited amount of smoke when burned, and, notably, stops burning when a flame is removed.
  • Thermal Conductivity. CPVC has a significantly low thermal conductivity, meaning only limited heat will transfer through firewalls to other rooms in the event of a concentrated fire.

To learn more about what it means for a pipe to be fire resistant, as well as CPVC’s performance in each category, check out this blog post.
