Fire Is the Most Common Safety Hazard In Chemical Plants
It was another quiet Sunday morning in the Houston metro area before residents were awakened by a bolstering fire and smoke when a storage vessel caught fire and quickly clouded the sky. One of the greatest safety concerns among many chemical plants and other industrial facilities had become a reality.
When a fire breaks out, normal operations can turn into chaos and life-threatening situations can develop within seconds as evidenced by the Houston fire and others. For this reason, fire performance must always be evaluated when selecting piping materials, including thermoplastics.
Designers and engineers should select engineered systems with proven performance and properties such as a low flash ignition temperature, burning resistance, flame spread resistance and limiting oxygen index (LOI) to create a safer, more reliable and productive environment.
CPVC Flash Ignition Temperature
A material’s flash ignition temperature is the lowest temperature at which combustible gas can be ignited by a small external flame. Corzan® CPVC has a flash ignition temperature of 900°F (482°C) compared to materials such as polyethylene which has a flash ignition temperature of 650°F (343°C).

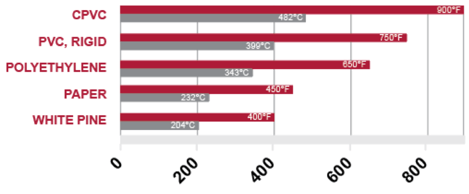

The tables that follow compare the flash ignition temperature for various thermoplastics and other materials.

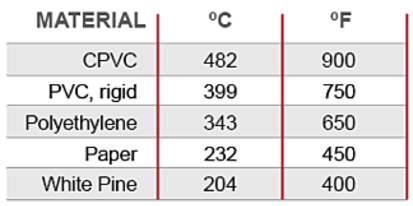

Flash Ignition Temperature Comparison
CPVC Flammability
The flammability of Corzan CPVC has been tested in accordance with UL 94, which is employed to determine the flammability of plastic materials used in components and parts for finished products. UL 94V-O subjects materials to various burning tests to determine their performance under flammable conditions.
Tests measure the inclination of a material to extinguish or spread a flame once it is ignited. A vertical rating of V-O indicates the material was tested in a vertical position and self-extinguished within a specified time after the ignition source was removed. During a vertical burn, the material must stop burning within 10 seconds, with no flaming drips allowed. Corzan CPVC has achieved the highest rating available within the scope of UL 94V-O.
Corzan CPVC Limiting Oxygen Index (LOI)
Combustion is not possible without the presence of sufficient fuel. Corzan CPVC has a very high Limiting Oxygen Index (LOI) of 60 and is engineered so that it will not provide fuel for a fire in the form of oxygen under normal atmospheric conditions.
The earth’s atmosphere is 21 percent oxygen, which means Corzan CPVC must have more than double the percentage of oxygen that naturally occurs in the atmosphere to be able to sustain a fire. Corzan CPVC will char on the outside but will self-extinguish once the fire source is removed, as shown in the following burn test video.

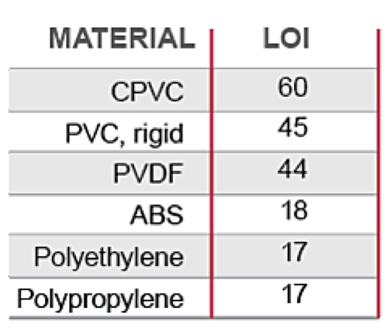

The following charts compare the LOI for CPVC with other thermoplastics.

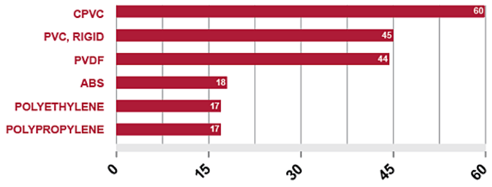

Limiting Oxygen Index Comparison
CPVC Resistance to Flame and Smoke Development
Factory Mutual developed a standard, FM 4910, for materials that require greater resistance to flame and smoke development to limit damage that can be caused by fires. Several Corzan CPVC compounds have been evaluated and passed the FM 4910 test protocol for fire propagation and smoke development, including gray duct compound for manufacture into seamless round extruded duct, gray pipe compound and the Corzan 4910 compounds used to manufacture sheet for fabrication into cleanroom equipment.
Compared to less expensive non-fire safe materials such as polypropylene (PP) and flame-retardant polypropylene (FR-PP), Corzan 4910 CPVC may not require additional fire suppression equipment, which will lower the overall cost of facility ownership.
Low Thermal Conductivity
Corzan CPVC has a very low thermal conductivity value that is approximately 1/300th of steel, which has a surface temperature that is generally equal to the temperature of the fluid that is conveyed. Facilities often take precautionary measures by insulating piping systems that are within reach of operators if the pipe’s exterior surface temperature will exceed 140°F.
With Corzan CPVC’s lower thermal conductivity, the surface temperature of CPVC pipe is significantly lower than the internal fluid temperature. Insulation is, therefore, usually not required for Corzan CPVC pipe, which lowers costs.

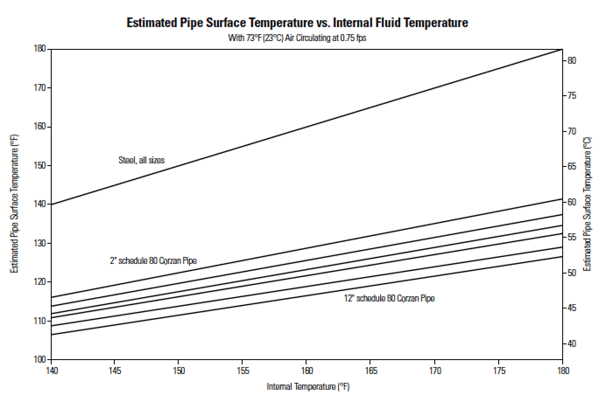

The figure below shows the approximate pipe surface temperature as a function of internal fluid temperature for a piping system with 73°F air circulating at .75 feet per second. Corzan pipe sizes of 2-, 4-, 6-, 8-,10- and 12-inch Schedule 80 are included. The graphic demonstrates the significant difference between steel and CPVC pipe, but should not be used for system design as the actual surface temperature of pipe in a working system depends on many factors such as ambient temperature, air circulation, velocity and direction, etc.
Choosing a Piping System With Proven Fire Performance
Fires in chemical plants and other industrial facilities can threaten lives, destroy equipment and cost thousands and even millions of dollars in cleanup. For this reason, fire performance should always be a consideration when selecting thermoplastic piping systems to ensure the material specified satisfies the application’s fire resistance requirements.
Many chemical plants and other industrial facilities specify Corzan CPVC because it offers a 60-year proven track record of meeting strict flame and smoke resistance regulations. Highly engineered Corzan CPVC also offers heat, pressure and corrosion resistance for reliable, long-term performance.
For more information, contact a Lubrizol partner manufacturer or a Corzan CPVC System Consultant for a free technical assessment.
